................Ledil Optics for High Performance LED Applications................
To see the new modified 2011 Ledil parts sheet (Click Here)
Use CTRL + F to search this page

LENSES FOR LED-ENGIN L.E.D.S

LE1 LENS SERIES (5 WATT)

-NOTE: LE1 SERIES WILL NOT FIT 10/15 WATT LAMPS!
- 7.00mm x 15.1mm x 21.56mm (LE1 SERIES)
- PMMA, HOLDER, NO TAPE
- VERSIONS: RS (n. 10451), SS (n. 10433), M (n. 10434), REC (n. 10514),

RGB-X SERIES (10 WATT/15WATT)
RGB-X (n. 10550) - 9.50mm x 19.0mm x 30.00mm (RGB-X SERIES)
- PMMA, HOLDER, NO TAPE

no image LE1 DS

no image RGB-X DS

BOOMERANG REFLECTOR (n. 10437)
- 19.79mm x 15.5mm
- metallized ABS
- FOR LED(s): LEDENGIN 5W & 10W LEDs

no image Data Sheet

LENSES FOR NICHIA L.E.D.S

NIS033U LENS SERIES - 21.6mm x 21.6mm x 14.2mm - VERSIONS: SS (C10331), M (C10281), W (C10341) - SPECIAL POLYMER, HOLDER, TAPE - FOR LED(s): NICHIA NCCU033, NCSU033A / NCSU034A	Select Part Number: View Price Break Range: Enter quantity.	Data Sheet
NICHIA 083 / 183 LENS SERIES - 21.6mm x 21.6mm x 13.1mm - VERSIONS: FA10336_NIS083-RS, FA10337_NIS083-SS, FA10338_NIS083-D, FA10339_NIS083-M, FA10340_NIS083-O, FA10903_NIS83-W-V6, 4FA11151_NIS83-O-90 - PC, HOLDER, TAPE - FOR LED(s): NICHIA 083 / 183	Select Part Number: View Price Break Range: Enter quantity.	Data Sheet
NICHIA 3-UP LENS SERIES - 50.0mm x 19.4mm - VERSIONS: C10436_NIS083-3-M, C10364_NIS083-3-W - PMMA, NO HOLDER, NO TAPE - FOR LED(s): NICHIA 083 / 183	Select Part Number: View Price Break Range: Enter quantity.	Data Sheet
NICHIA 4-UP LENS SERIES - 50.0mm x 15.23mm - VERSIONS: C10385_NIS083-4-SS, C10386_NIS083-4-M, C10387_NIS083-4-W - PMMA, NO HOLDER, NO TAPE - FOR LED(s): NICHIA 083 / 183	Select Part Number: View Price Break Range: Enter quantity.	Data Sheet
NIS083-5-M LENS SERIES - 35.5mm - VERSIONS: M (C10390) - PMMA, NO HOLDER, NO TAPE - FOR LED(s): NICHIA RIGEL 083	Select Part Number: View Price Break Range: Enter quantity.	Data Sheet
NICHIA 7-UP LENS SERIES - 38mm x 11.4mm - VERSIONS: C10373_NIS-7-M, C10633_NIS-7-MD, C10585_NIS-7-W, C10586_NIS-7-WW - PMMA, NO HOLDER, NO TAPE - FOR LED(s): NICHIA 083 / 183	Select Part Number: View Price Break Range: Enter quantity.	Data Sheet
NIS036 LENS SERIES - 21.6mm x 21.6mm x 12.4mm - VERSIONS: RS (CCA10595), SS (CCA10594), D (CCA10593), M (CCA10592), O (CCA10596), W (CCA10624) - PC, HOLDER, TAPE - FOR LED(s): NICHIA RIGEL 036	Select Part Number: View Price Break Range: Enter quantity.	Data Sheet
LN1 LENS SERIES - D=21.6mm (holder+lens assembled) - VERSIONS: RS (CC10468), SS (CC10466), M (CC10467), REC (CC10529) - PMMA, HOLDER, NO TAPE - FOR LED(s): NICHIA 107	Select Part Number: View Price Break Range: Enter quantity.	Data Sheet
NIS036-5-M LENS SERIES - 35.5mm x 6.7mm - VERSIONS: M (C10390) - PMMA, NO HOLDER, NO TAPE - FOR LED(s): NICHIA RIGEL 036	Select Part Number: View Price Break Range: Enter quantity.	Data Sheet

LENSES FOR LUXEON REBEL L.E.D.S

LR1 LENS SERIES - DIMENSIONS: 7.00mm x 16.5mm x 16.8mm - LENS VERSIONS: RS (C10457), SS (C10455), M (C10456), REC (C10512) - PMMA, HOLDER, NO TAPE - FOR LED(s): LUXEON REBEL LED	Select Part Number: View Price Break Range: Enter quantity.	Data Sheet
RES LENS SERIES - DIMENSIONS: 21.6mm x 21.6mm x 12.9mm - LENS VERSIONS: RS (C10332), SS (C10283), D (C10284), M (C10285), W (C10341), O (C10286) - PMMA, PC, HOLDER, TAPE - FOR LED(s): LUXEON REBEL	Select Part Number: View Price Break Range: Enter quantity.	Data Sheet
RER-5-M LENS SERIES - 35.5mm x 6.7mm - VERSIONS: M (C10390) - PMMA, NO HOLDER, NO TAPE - FOR LED(s): LUXEON REBEL	Select Part Number: View Price Break Range: Enter quantity.	Data Sheet

LENSES FOR LUXEON K2, I, III L.E.D.S

APOLLO LENS SERIES - DIMENSIONS: 26.0mm x 16.5mm, 16.8mm - LENS VERSIONS: SS (C10315), M (C10251), - O (C10316), W (C10243) - PMMA, HOLDER, TAPE - FOR LED(s): LUXEON K2, LUXEON I/III	Select Part Number: View Price Break Range: Enter quantity.	Data Sheet
APOLLO-3 LENS SERIES - DIMENSIONS: 50.0mm x 17.0mm, 19.4mm, 20.9mm - VERSIONS: SS (C10256), M (C10371), W (C10363) - PMMA, NO HOLDER, NO TAPE - FOR LED(s): LUXEON K2, LUXEON I/III	Select Part Number: View Price Break Range: Enter quantity.	Data Sheet
FLARE LENS SERIES (C10053) - DIMENSIONS: 25.5mm x 25.0mm x 15.5mm - PMMA, NO HOLDER, NO TAPE - FOR LED(s): LUXEON K2, I / III	Select Part Number: View Price Break Range: Enter quantity.	Data Sheet
K2S LENS SERIES - 21.6mm x 21.6mm x 15.1mm - VERSIONS: RS (CFA10307), SS (CFA10329), - D (CFA10308), M (CFA10309), W (CFA10323), O (CFA10310) - PC, HOLDER, TAPE - FOR LED(s): LUXEON K2, LUXEON I / III	Select Part Number: View Price Break Range: Enter quantity.	Data Sheet
SNOWWHITE (C10537) - 5.0mm x 5.0mm x 2.4mm - PMMA, NO HOLDER, NO TAPE - FOR LED(s): LUXEON PWT LED	Select Part Number: View Price Break Range: Enter quantity.	Data Sheet


					LENSES FOR SEOUL P3,P4, P5, P7, ACRICHE AX3221 L.E.D.S

LZ1 LENS SERIES - 7.00mm x 16.5mm x 16.8mm - VERSIONS: RS (C10450), SS (C10438), M (C10439), REC (C10513) - PMMA, HOLDER, NO TAPE - FOR LED(s): SEOUL SEMICONDUCTOR P3, P4	Select Part Number: View Price Break Range: Enter quantity.	Data Sheet

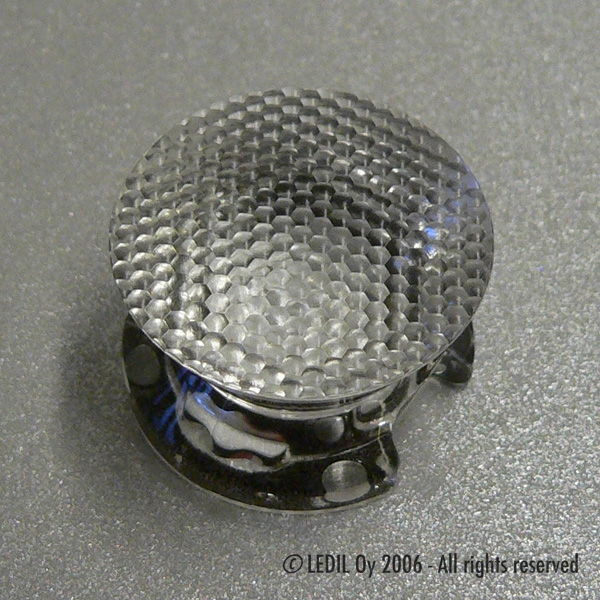

SPUTNIK-R LENS SERIES - 26.0mm x 15.8mm - VERSIONS: M (C10298) - PMMA, NO HOLDER, TAPE - FOR LED(s): SEOUL SEMICONDUCTOR P5	Select Part Number: View Price Break Range: Enter quantity.	Data Sheet
SPUTNIK-Z LENS SERIES - 26.0mm x 16.0mm, 16.1mm, 16.3mm - VERSIONS: SS (C10321), M (C10249), O (C10322), W (C10241) - PMMA, NO HOLDER, TAPE - FOR LED(s): SEOUL SEMICONDUCTOR P3, P4	Select Part Number: View Price Break Range: Enter quantity.	Data Sheet
BOOM REFLECTOR - 22.2mm x 14.34mm - DRAWINGS AVAILABLE! - VERSIONS: SS (C10588), M (C10589), W (C10590) - metallized PC - FOR LED(s): SEOUL Acriche AX3221 / P7 LEDs	Select Part Number: View Price Break Range: Enter quantity.	Data Sheet
SSS LENS SERIES - 21.6mm x 21.6mm x 14.8mm - VERSIONS: RS (CFA10311), SS (CFA10330), -D (CFA10312), M (CFA10313), W C(FA10539), O (CFA10314) - PC, HOLDER, TAPE - FOR LED(s): SEOUL SEMICONDUCTOR P3, P4	Select Part Number: View Price Break Range: Enter quantity.	Data Sheet
LAIKA-3 LENS SERIES - 50.0mm x 18.9mm - VERSIONS: SS (C10257), M (C10371), W (C10363) - PMMA, NO HOLDER, NO TAPE - FOR LED(s): SEOUL SEMICONDUCTOR P3, P4	Select Part Number: View Price Break Range: Enter quantity.	Data Sheet

LENSES FOR OSRAM L.E.D.S

LO1 LENS SERIES - D=21.6mm (holder+lens assembled) - VERSIONS: RS (CC10465), SS (CC10463), - M (CC10464) , REC (CC10528) - PMMA, HOLDER, NO TAPE - FOR LED(s): OSRAM GOLDEN DRAGON, PLATINUM DRAGON, GOLDEN DRAGON+	Select Part Number: View Price Break Range: Enter quantity.	Data Sheet
LD1 LENS SERIES - D=21.6mm (holder+lens assembled) - VERSIONS: RS (C10492), SS (C10490), M (C10491), REC (C10493) - PMMA, HOLDER, NO TAPE - FOR LED(s): OSRAM-OS DIAMOND DRAGON LEDs	Select Part Number: View Price Break Range: Enter quantity.	Data Sheet
TINA LENS SERIES - 16mm x 8.63mm - VERSIONS: M (C10579), D (C10578),W (C10449) - PMMA, HOLDER, NO TAPE - FOR LED(s): OSRAM GOLDEN DRAGON, IR DRAGON, DRAGON+	Select Part Number: View Price Break Range: Enter quantity.	Data Sheet
TITANUM LENS SERIES - 26.0mm x 14.6m, 14.7mm ,15.2mm - VERSIONS: SS (C10318), M (C10252), O (C10319), W (C10244) - PMMA, NO HOLDER, TAPE - FOR LED(s): OSRAM GOLDEN DRAGON, PLATINUM DRAGON, IR DRAGON	Select Part Number: View Price Break Range: Enter quantity.	Data Sheet
LEDILSTAR-L LENS SERIES - 35.0mm x 24.6mm - VERSIONS: S (C10265), W (C10266) - PC, NO HOLDER, NO TAPE - FOR LED(s): OSRAM OSTAR LIGHTING LEDs	Select Part Number: View Price Break Range: Enter quantity.	Data Sheet
LEDILSTAR-P LENS SERIES - 35.0mm x 24.6mm (SUB 26.2mm) - VERSIONS: S (C10271),SUB, W (C10270) - PC, NO HOLDER, NO TAPE - FOR LED(s): OSRAM OSTAR PROJECTION	Select Part Number: View Price Break Range: Enter quantity.	Data Sheet
NATALIE LENS SERIES (C10267) - 35.6mm x 6.2mm - PC, NO HOLDER, NO TAPE - FOR LED(s): OSRAM-OS OSTAR LIGHTING LEDs	Select Part Number: View Price Break Range: Enter quantity.	Data Sheet
LISA LENS SERIES - 10.7mm x 7.0mm - VERSIONS: SS (CCA10444) - PMMA, HOLDER, NO TAPE - FOR LED(s): OSRAM PLATINUM DRAGON, IR DRAGON	Select Part Number: View Price Break Range: Enter quantity.	Data Sheet
CAT LENS SERIES (C10410) - 31.5mm x 27.0mm x 23.0mm - PMMA, NO HOLDER, NO TAPE - FOR LED(s):OSTAR LIGHTING LEDs	Select Part Number: View Price Break Range: Enter quantity.	Data Sheet
OSR-5-M LENS SERIES - 35.5mm x 6.7mm - VERSIONS: M (C10390) - PMMA, NO HOLDER, NO TAPE - FOR LED(s): OSRAM PLATINUM DRAGON, IR DRAGON	Select Part Number: View Price Break Range: Enter quantity.	Data Sheet
BOOMERANG REFLECTOR (C10437) - 19.79mm x 15.5mm - metallized ABS - FOR LED(s): OSTAR LIGHTING	Select Part Number: View Price Break Range: Enter quantity.	Data Sheet
TITANUM-3 LENS SERIES - 50.0mm x 18.4mm (M 19.9mm) - VERSIONS: SS (C10268), M (C10368) - PMMA, NO HOLDER, NO TAPE - FOR LED(s): OSRAM GOLDEN DRAGON, PLATINUM DRAGON	Select Part Number: View Price Break Range: Enter quantity.	Data Sheet
OSS LENS SERIES - 21.6mm x 13.8mm - VERSIONS: RS (CFA10299), SS (CFA10327), - D (CFA10300) , M (CFA10301), W (CFA10342), O (C10302) - PC, HOLDER, TAPE - FOR LED(s): OSRAM GOLDEN DRAGON, PLATINUM DRAGON, IR DRAGON	Select Part Number: View Price Break Range: Enter quantity.	Data Sheet
PLATINUM-3 LENS SERIES - 50.0mm x 15.6mm - VERSIONS: SS (C10366), M (C10367), W (C10365) - PMMA, NO HOLDER, NO TAPE - FOR LED(s): OSRAM PLATINUM DRAGON, IR DRAGON	Select Part Number: View Price Break Range: Enter quantity.	Data Sheet

LENSES FOR CREE XLAMP XR, MC-E, XP-E L.E.D.S

ROCKET LENS SERIES - 26.0mm x 14.6mm - VERSIONS: SS (C10324), M (C10250), O (C10325), W (C10406) - PMMA, NO HOLDER, TAPE - FOR LED(s): CREE XLAMP XR	Select Part Number: View Price Break Range: Enter quantity.	Data Sheet
LC1 LENS SERIES - 7.00mm x 16.5mm x 16.8mm - VERSIONS: RS (C10454), SS (C10452), M (C10453), REC (C10511) - PMMA, HOLDER, NO TAPE - FOR LED(s): CREE XLAMP XR LEDs	Select Part Number: View Price Break Range: Enter quantity.	Data Sheet
RGB-X LENS SERIES - 7.60mm x 25.10mm x 27.96mm - DRAWINGS AVAILABLE! - VERSIONS: M (CC10542) - PC, HOLDER, TAPE - FOR LED(s): CREE MC-E LEDs	Select Part Number: View Price Break Range: Enter quantity.	Data Sheet
EVA LENS SERIES - 7.10mm x 16.40mm x 35mm - DRAWINGS AVAILABLE! - VERSIONS: SS (CC10684), M (CC10685), W (CC10686) - PC, HOLDER, TAPE - FOR LED(s): CREE MC-E LEDs	Select Part Number: View Price Break Range: Enter quantity.	Data Sheet
CMC LENS SERIES - PREMILINARY DATASHEET COMING! - VERSIONS: RS (CFA10679), SS (CFA10678), D (CFA10677), M (CFA10676), O (CFA10680), W (CFA10714) - PC, HOLDER, TAPE - FOR LED(s): CREE MC-E LEDs	Select Part Number: View Price Break Range: Enter quantity.	Data Sheet
BOOM REFLECTOR - 22.2mm x 13.54mm - DRAWINGS AVAILABLE! - VERSIONS: SS (C10569), M (C10570), W (C10571) - metallized PC - FOR LED(s): CREE MC-E LEDs	Select Part Number: View Price Break Range: Enter quantity.	Data Sheet
FLARE-C LENS SERIES (C10402) - 29.0mm x 24.5mm x 14.7mm - PMMA, NO HOLDER, NO TAPE - FOR LED(s): CREE XLAMP XR LEDs	Select Part Number: View Price Break Range: Enter quantity.	Data Sheet
FLARE-C-TAPE LENS SERIES (CC10563) - 29.0mm x 24.5mm x 14.5mm - TAPE, PMMA, NO HOLDER - FOR LED(s): CREE XLAMP XR LEDs	Select Part Number: View Price Break Range: Enter quantity.	Data Sheet
FLARE-C-DIFF LENS SERIES (C10527) - 29.0mm x 24.5mm x 14.7mm - PMMA, NO HOLDER, NO TAPE - FOR LED(s): CREE XLAMP XR LEDs	Select Part Number: View Price Break Range: Enter quantity.	Data Sheet
CRS LENS SERIES - 21.6mm x 21.6mm x 13.8mm - VERSIONS: RS (CFA10303), SS (CFA10328), D (CFA10304), - M (CFA10305), O (CFA10306), W (CFA10343) - PC, HOLDER, TAPE - FOR LED(s): CREE XLAMP XR LEDs	Select Part Number: View Price Break Range: Enter quantity.	Data Sheet
CUTE-3 LENS SERIES - 35.00mm x 15mm - VERSIONS: SS (C10428), M (C10427) - PMMA, NO HOLDER, NO TAPE - FOR LED(s): CREE XLAMP XR LEDs	Select Part Number: View Price Break Range: Enter quantity.	Data Sheet
CUTE-4 LENS SERIES - 35.00mm x 15mm - VERSIONS: SS (C10446) , M (C10447) - PMMA, NO HOLDER, NO TAPE - FOR LED(s): CREE XLAMP XR LEDs	Select Part Number: View Price Break Range: Enter quantity.	Data Sheet
ROCKET-3 LENS SERIES - 50.0mm x 15.6mm - VERSIONS: SS (C10366), M (C10367), W (C10365) - PMMA, NO HOLDER, NO TAPE - FOR LED(s): CREE XLAMP XR	Select Part Number: View Price Break Range: Enter quantity.	Data Sheet
CRS LENS SERIES - 21.6mm x 21.6mm x 13.8mm - VERSIONS: RS (CFA10303), SS (CFA10328), D (CFA10304), - M (CFA10305), O (CFA10306), W (CFA10343) - PC, HOLDER, TAPE - FOR LED(s): CREE XLAMP XR LEDs	Select Part Number: View Price Break Range: Enter quantity.	Data Sheet
MR11 LENS SERIES - DATASHEET COMING SOON! - VERSIONS: RS , SS , M , W - PC, HOLDER, TAPE - FOR LED(s): CREE MC-E LEDs	Select Part Number: View Price Break Range: Enter quantity.	Data Sheet

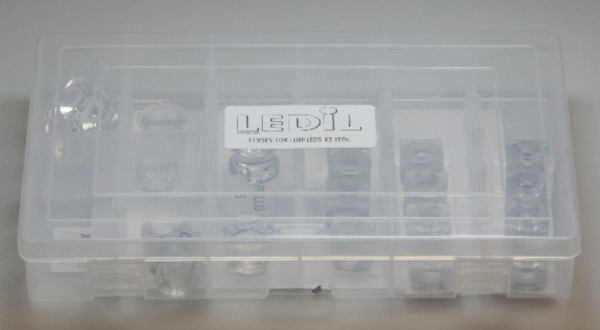

	LEDIL lens kits make it easy for you to test the performance of LEDIL lenses. Each Lens Kit contains 2 samples of each lens type available for the given LED. LEDIL lens kits are available for following LED types. CREE, SEOUL, LUXEON K2, OSRAM DRAGON, OSRAM OSTAR Price Each = $91 USD	Select Kit: Enter Quantity:
	LEDIL Test Modules make it easy for you to test the performance of LEDIL lenses with a properly made light engine. Each engine consists of a ceramic LED PCB with onboard constant current driver circuit, heat sink and battery pack for 4 AA batteries. LEDIL test modules are available for following LED types: Cree XR lenses, Luxeon K2 lenses, Osram Dragon lenses, Seoul Semiconductor P3/P4 lenses. Price Each = $34 USD	Select Kit: Enter Quantity:
